- Diode
- Red
- Laser wavelength
- 635nm
- Leveling method
- Automatic leveling
- Working range
- 800m
- Accuracy
- ±0.05mm/m
- Area shielding function
- Y
- Dual axis slope scaning function
- Yes with LCD
- Area scaning and angle adjustable function
- N
- Unbalanced warning
- Y
- VWS function
- Y
- Area shielding function
- N
- Sleep function
- Y
- Long distance tracking function
- Y
- Up plumb dot
- Y
- Forced rotation mode
- Y
- Two-way wireless communication function
- Y
- Output Lines
- H-V
- Self-leveling range
- ±8°
- IP class
- IP67
- Weight
- 4Kg
- Size
- 294×186×244mm
- Power supply
- 3*D battery or 8000mah Li battery box(could reach above 200h with solar panel in the sunlight)

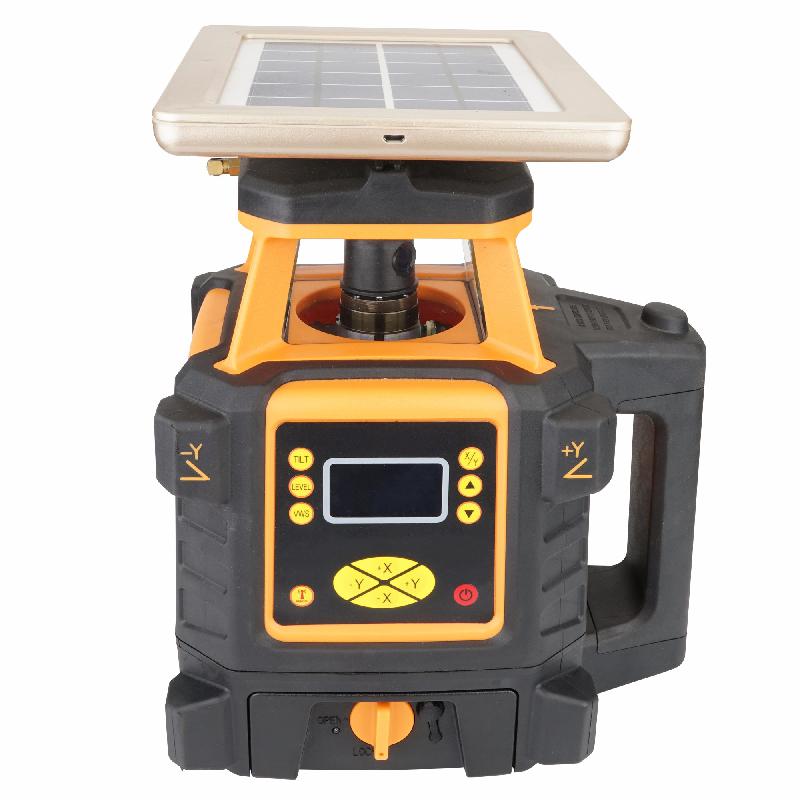

Laser Land Levelers
LS535
& Free ShippingFeatures
- OLED LCD
- Slope scanning function could set the grade value for the axis accurately.
- TILT mode has the unleveled alarm function, the laser stop rotating once hit to insure the construction accuracy.
- VWS function could set the instrument to be low sensitive, to insure the reliable wild working performance
- MAN mode could set the instrument into the forcible rotating status
- Able to be switchable between the high and low power
- Able to work with receiver to realize the long distance tracking
- Optional solar battery charging panel
