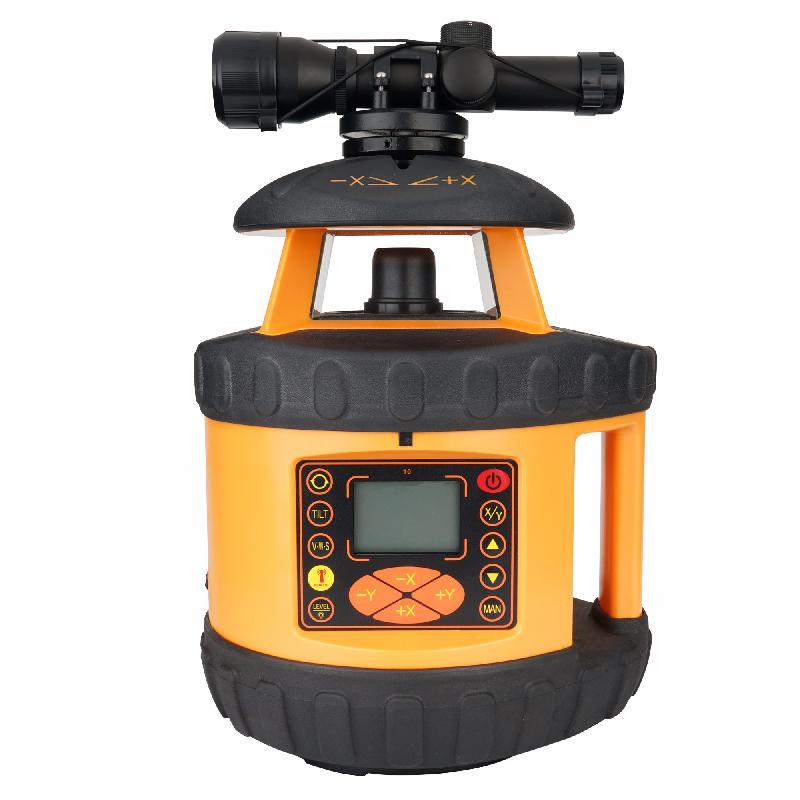

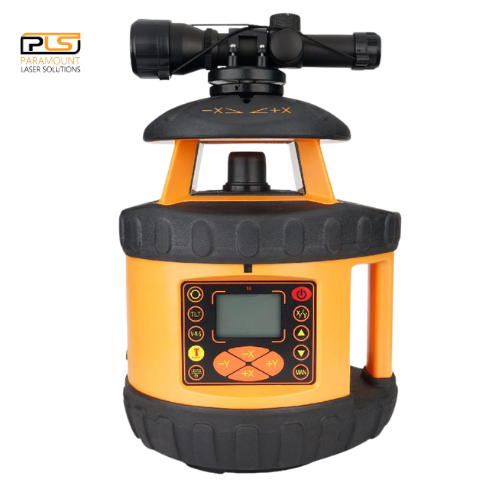

PLS530

Description

• Horizontal 360° rotary laser, adjustable in rotation speed
• Electronic leveling, warning when beyond auto-leveling range
• Area shielding function
• Dual axis grade digital set
• Unbalance warning function
• VWS function
• Forcible rotation function
• Two-way wireless communication function


  Technical Specifications

  • Laser Type: Diode Red Laser

  • Laser Wavelength: 635 nm

  • Leveling Method: Automatic Leveling

  • Working Range: Up to 600 m

  • Accuracy: ±0.05 mm/m

  • Area Shielding Function: Yes

  • Dual Axis Slope Scanning: Yes (with LCD)

  • Area Scanning & Angle Adjustment: Not Available

  • Unbalanced Warning: Yes

  • VWS Function: Yes

  • Sleep Function: Yes

  • Long Distance Tracking: Not Available

  • Up Plumb Dot: Yes

  • Forced Rotation Mode: Yes

  • Two-Way Wireless Communication: Not Available

  • Output Lines: Horizontal / Vertical (H-V)

  • Self-Leveling Range: ±5°

  • Protection Class: IP66

  • Weight: 4 kg

  • Dimensions: 220 × 200 × 280 mm

  • Power Supply: Ni-MH Battery or 4 × D Batteries
